Install Portainer EE

Deploy Portainer and Portainer Agent using Docker Compose¶

Setting up Portainer and Portainer Agent with Docker Compose simplifies container management, enabling efficient multi-host monitoring, centralized control,>

Portainer offers a web-based user interface that simplifies the management of Docker environments and Kubernetes clusters, making it an attractive option fo>

Setup Portainer on Docker Swarm¶

1. We download the official yaml script from Portainer for the Enterprise Edition.

   sudo curl -L https://downloads.portainer.io/ee2-21/portainer-agent-stack.yml -o portainer-agent-stack.yml


2. The portainer-agent-stack.yml file as seen below can be used directly without modifications to the swarm.

   version: '3.2'

   services:
     agent:
       image: portainer/agent:2.21.5
       volumes:
         - /var/run/docker.sock:/var/run/docker.sock
         - /var/lib/docker/volumes:/var/lib/docker/volumes
       networks:
         - agent_network
       deploy:
         mode: global
         placement:
           constraints: [node.platform.os == linux]

     portainer:
       image: portainer/portainer-ee:2.21.5
       command: -H tcp://tasks.agent:9001 --tlsskipverify
       ports:
         - "9443:9443"
         - "9000:9000"
         - "8000:8000"
       volumes:
         - type: bind
           source: /mnt/docker-storage/portainer
           target: /data
       networks:
         - agent_network
       deploy:
         mode: replicated
         replicas: 1
         placement:
           constraints: [node.role == manager]

   networks:
     agent_network:
       driver: overlay
       attachable: true

   volumes:
     portainer_data:


3. Deploy Portainer as stack to the swarm on the Master node.

   sudo docker stack deploy -c portainer-agent-stack.yml portainer

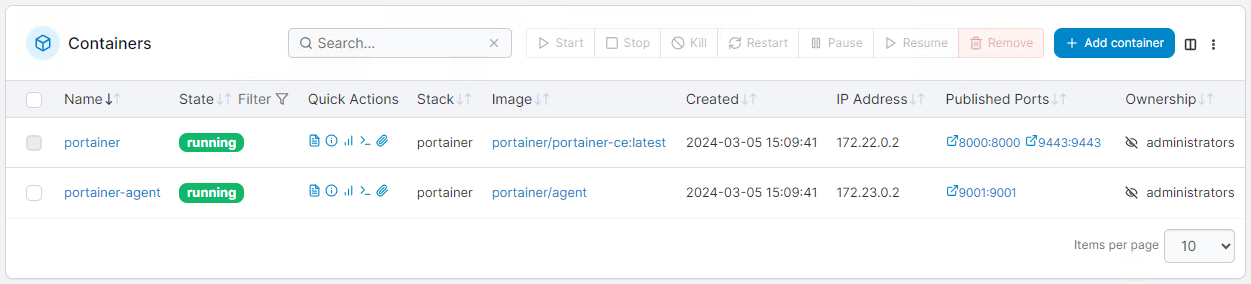

4. Verify that Portainer has been deployed.

   sudo docker ps

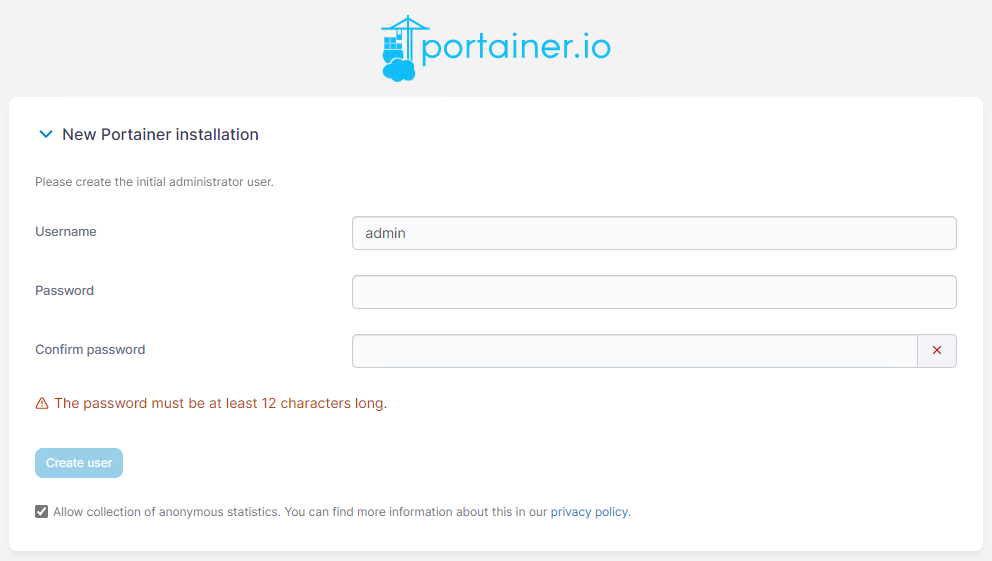

5. Login to Portainer via https://localhost:9443 or https://yourhostname:9443 and setup passwords etc.

You should now have Portainer and Portainer in the same stack.

Conclusion¶

Congratulations! You have successfully installed Docker Swarm and Portainer on your Ubuntu 24.04 servers. You have learned how to deploy, scale, and remove >

Remember, Docker Swarm is just one of the many tools available to help you streamline your development and deployment processes.
